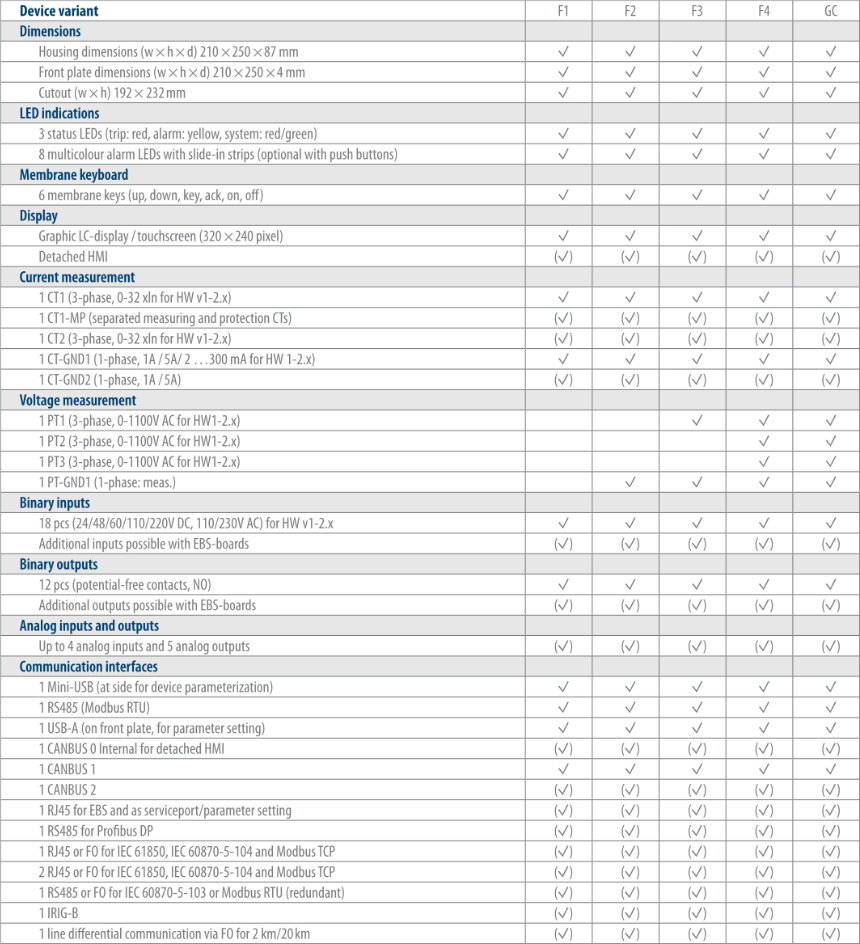

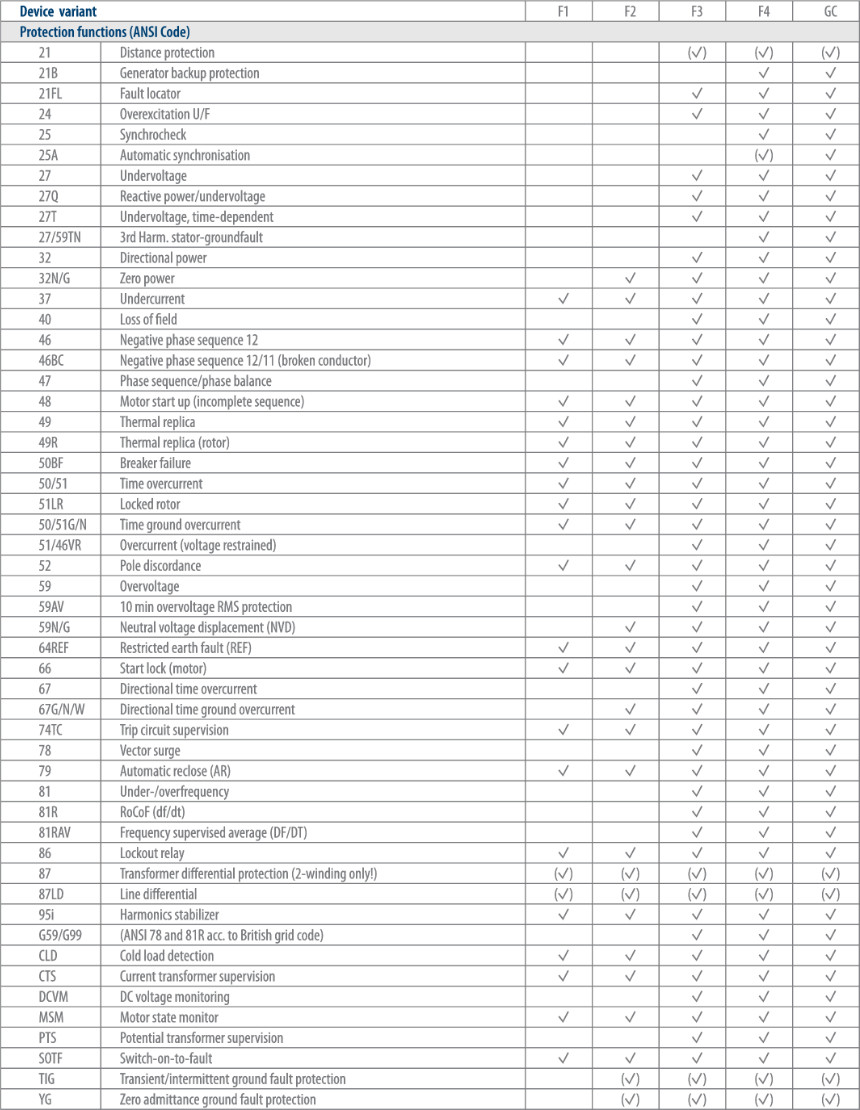

SYMAP®Compact

The active alarm page is automatically activated when an alarm occurs. Up-to 464 alarms can be set in the alarm list with up-to 50 alarm groups. With every alarm it is possible to set the following:

• two trigger events
• alarm text
• conditions: OFF, Latched, Unlatched and No ACK
• text colour, LED colour and graphic LED colour
• blocking events
• alarm groups
• recording of alarms in recorder functions
• remote ACK
• acoustic alarm

A large number of PLC logics and function blocks, user-programmable inputs and outputs and predefined logical event numbers allows the user to create powerful control and automation functions.

Event recorder

The event history saves up-to 10.000 events by using the first-in-first-out (FIFO) principle. Each event provides information such as

• the consecutive number
• the event number
• the event text
• date and time stamp

Events are recorded with a temporal resolution of 1 ms and will be displayed in chronological order. The latest event is on top of the event list.

Fault recorder

The fault recorder saves up-to 1.000 recordings by using the first-in-first-out (FIFO) principle. The fault recorder records:

• all relevant file information (record number, trigger-event number, event text, date and time stamp)
• all available measuring values of current, voltage and frequency (depending on the SYMAP®Compact+ device variant) for one record

Disturbance recorder

For the “disturbance recorder” function, the device is equipped with a volatile 20 MB RAM-memory to buffer the measuring data. That RAM-memory can be divided in up-to 10 individual memory sections (buffers for recorded data). One record can be max. 63,31 s long.

The total number of protocols that can be run simultaneously depends on the number of communication interfaces. The protocols under Ethernet interface Modbus TCP, IEC 61850 and IEC 60870-5 can always work simultaneously.

Communication interface

Standard port

• one USB-A (on front plate; for parameter setting)
• one Mini-USB (on the side for parameter setting)
• one CANBUS 1 (factory protocol)
• one CANBUS 2 (factory protocol - optional)
• one RS485 port

Standard port

• one fiber optic interface (line diff. protection / SCADA)
• one RS485 port (Modbus RTU or IEC 60870-5-103)
• one RJ45 service port (side)
• two RJ45 ports (rear)
• one fiber optic port (rear)
• two fiber optic ports (rear)
• IRIG-B port

Protocols

• Profibus DP (option)
• Modbus RTU (standard)
• Modbus RTU redundant (option)
• Modbus TCP/IP (option)
• IEC 60870-5-103 (option)
• IEC 60870-5-104 (option)
• IEC 61850 Ed. 1 & Ed. 2 (option)
• proprietary protocols

Network protocols and time synchronization

• RSTP (rapid spanning tree protocol)
• HSR (high-availability seamless redundancy), IEC 62439-3
• PRP (parallel redundancy protocol), IEC 62439-3
• SNTP (simple network time protocol)
• IRIG-B

SYMAP®Compact+ with a number of virtual inputs and outputs allows to extend the use of GOOSE messages for various applications. Most important, it can provide additional safety and flexibility for a wide range of applications.

• 128 virtual inputs
• 128 virtual outputs

High-Speed GOOSE

Under normal conditions, the response time for GOOSE messages incl. application time is approx. 2,7 ms. Under GOOSE performance testing conditions (abnormal conditions), the response time can be up-to 1-1,5 ms longer. However, messages are never lost and there is no further processing.

SYMAP®Compact+

• time span for application and communication approx. 2,7 ms
• time for communication approx. 0,5 ms

The number of binary inputs and outputs can be increased with the Extension Board System (EBS). It consists of several board types with different functions. Each board is designed for DIN rail mounting according to standard DIN TS35. The maximum number of binary inputs and outputs via extension boards besides the SYMAP®Compact+ basic unit are:

• 50 EBS binary inputs
• 24 EBS binary outputs

EB-PS

• power supply
• 1 system LED
• 3 RJ45 ports and 3 binary inputs with LED status
• 3 BIs (Un: 12/24/48/60/220 V DC; 110 V AC/DC; 230 V AC: parameterizable)

Housing dimensions (W×H×D): 91,5 x 91,5 x 76,2 mm

B-BI8-A

• 8 binary inputs with LED status
• 2 independent voltage groups
• BIs (Un: 12/24/48/60/220V DC; 110V AC/DC; 230V AC: parameterizable)

Housing dimensions: (W×H×D): 91,5 x 30,5 x 76,2 mm

EB-BI10-OC

• 10 binary inputs (opto-couplers)
• 2 independent voltage groups
• BI s (Un: 12/24/48/60/220V DC; 110V AC/DC; 230V AC: parameterizable)

Housing dimensions: (W×H×D): 91,5 x 30,5 x 76,2 mm

EB-BO6-R-6

• 6 binary outputs (NO contacts)

Housing dimensions: (W×H×D): 91,5 x 30,5 x 76,2 mm

EB-BO4-R-4

• 4 binary outputs (change-over contacts)

Housing dimensions: (W×H×D): 91,5 x 30,5 x 76,2 mm

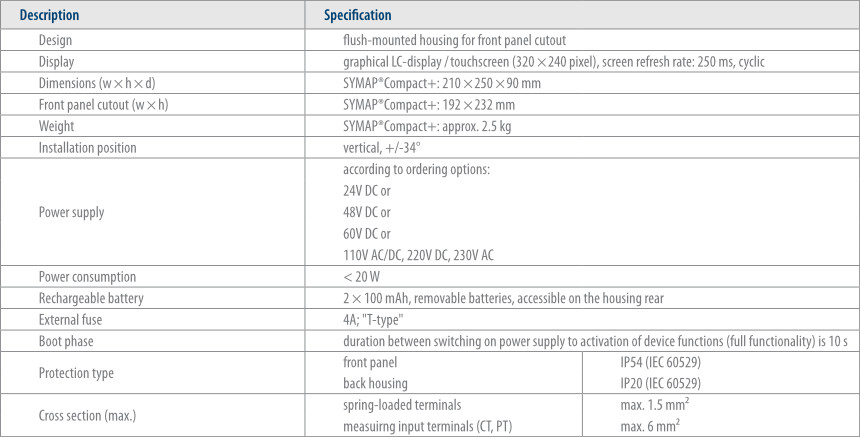

SYMAP®Compact+ has a compact housing with a small depth. The 90 mm depth including terminal plugs is suitable for almost any compartment, for both shallow and/or narrow compartments.

For retrofit projects it can save additional mechanical extensions and work when mounting and adjusting the device on the compartment door.

• Width: 210 mm
• Height: 250 mm
• Depth: 90 mm (incl. terminal plugs)
• Weight: approx. 2,5 kg

SYMAP®Compact+ has up-to five microcontrollers for better performance and reliability. One microcontroller for measurement and protection functions (MU), one for control functions (CU), one for the graphic unit (GU), one for communication (ComU) and one for additional inputs and outputs (EBS). In the rare case of a broken touchscreen or damaged graphic unit, the device can still work, or, in case the robust communication card is in failure, protection and control will still work. If control or protection is in failure, the communication card can remotely send the alarm message that the device is in failure. The intermediate communication between microcontrollers covers different sorts of watchdog functions and self-diagnostic tasks.

Five micro-controllers:

• Control Unit – CU
• Measurement and Protection functions – MU
• Graphic Unit – GU
• Communication Unit – ComU (optional)
• Extension Board System (I/O) – EBS (optional)
