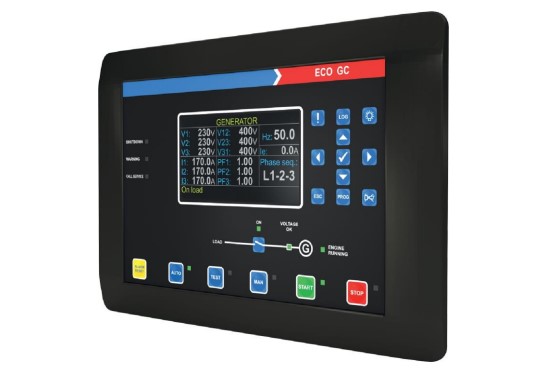

Eco GC Datasheet
ECO GC Datasheet
- Multi genset load sharing (up to 32 gensets)
- kW and kVArload sharing
- Busbar voltages and frequency measurements
- Dead bus sensing
- Bus failure detection
- Sequential set start
- Manual voltage/frequency adjustment
- Load dependent automatic Start/Stop
- Equal aging of gensets
- Direct/Reverse governor andAVR control
- Volts, frequency and phase matching
- Synchroscope display
- Logic Controller functionality for PLC
- Black or gray theme selection for 4.3" TFT LCD screen100
- Pre-Alarm:
- Engine temperature
- Oil pressure
- Fuel level
- Over / Under voltage
- Over / Under frequency
- Over / Under speed
- Fail Monitoring :
- Emergency stop
- Failed to start
- Low oil pressure
- High temperature
- Speed failure
- Voltage failure
- Charging fail
- Shutdown
- Warning
- Warning & Electrical trip :
- Earth fault
- Over current
- Short circuit
- Error :
- Over / Under speed
- Speed loss
- Earth fault
- Fuel level
- Battery low
- Battery high
- Maintenance
- Over current
- Short circuit
- Engine stop
- CanBus
- Charge alternator
- Controls :
- Fuel and Stop solenoid
- ECU power and stop
- Starter motor
- Automatic generator start
- Preheat
- External alarm horn
- Engine cooling
- Idle mode
- Alarm :
- Generator breaker not opened
- Generator breaker not closed
| Dimensions | : 276 mm x 189 mm x 45 mm. (including connectors). Plastic housing for panel mounting. |
| Panel Cut-Out | : 223mm x 162mm. |
| Protection | : IP65 at front panel. |
| Weight | : Approximately 0,82 Kg |
| Environmental Rating | : Standard, indoor at an altitude of less then 2000 meters with non-condensing humidity |
| Operating/Storage Temperature | : -20°C to +70°C / -30°C to +80°C |
| Operating/Storage Humidity | : 95% max. (non-condensing) |
| DC Battery Supply Voltage | : 8 to 32 V dc (Peak: 36Vdc) Max. operating current is 860 mA. |
| CT Secondary | : 5A |
| Sender Measurement | : 0 to 1300 ohm, accuracy: 1 % FS, resolution: 1 ohm |
| Communication Interface | : USB programming and communication port, CanBus communication with 1939 ECU, CanOpen, Ethernet, RS485. |
| Order Information | |
| ECO GC | Synchronising & Load Sharing Unit For Gas/Diesel/Gasoline Generators with J1939 ECU communication |
