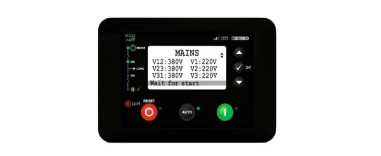

Genset V03

Name: Aaradhya Power Solutions
Address: Sr. No. 78/1, Shree Ram Colony - 1, Gajanan Maharaj Nagar, Next To B U Bhandari Skyline Society, Dighi,, Pune, 411015, IN
Telephone: +91 7030243444

Parameter configuration via RS-232 port of your notebook
Authorised access, secure communication
Selectable second language
Log last 50 events & alarm information with measured values
Statistics records
Mains & Generator phase sequence control
3 phase mains voltage measurement
Power factor measurement for 3 phases
3 phase Load current measurement
Configurable 5 inputs & 4 outputs
Local Remote Control and Visualisation function

3 resistive sender inputs for Level, Temperature, Oil Pressure
Selectable Resistive sender types: Pt-100 VDO, US, GM, Ford, Datcon, etc...
Speed sensing from alternator voltage or magnetic pickup
CanBus J1939 ECU communication
SPN, FMI and OC values reading from engines via J1939
Remote Start/Stop Speed and Idle mode Control via J1939
Load Test selection
Compatible to Diesel, Gas or Gasoline generators
Auto, Manual and Test modes
Active, Reactive, Apparent power measurement
Adjustable Start and Stop timers

Pre-Alarm:
Engine temperature
Oil pressure
Fuel level
Over / Under voltage
Over / Under frequency
Over / Under speed

Fail Monitoring:
Emergency stop
Failed to start
Low oil pressure
High temperature
Speed failure
Voltage failure
Charging fail
Shutdown
Warning

Error:
Over / Under speed
Speed loss
Speed low
Battery low
Battery high
Maintenance
Over current
Short circuit
Engine stop
CanBus
Charge alternator

Warning & Electrical trip:
Over current
Short circuit

Controls:
Fuel and Stop solenoid
ECU power and stop
Starter motor
Automatic generator start
Load transfer to mains
Preheat
External alarm horn
Engine cooling
Idle mode

Alarm:
Mains breaker not opened
Generator breaker not opened
Generator breaker not closed

Dimensions	: 158mm x 111mm x 67mm
Panel Cut-Out	: 120mm x 94mm
Protection	: Ip65 at front panel
Weight	: Approximately 0,26kg
Operating/Storage Temperature	: -20°C to + 70°C / -30°C to +80°C
Operating/Storage Humidity	: 95% max. (non-condensing)
DC battery supply voltage	: 8 to 32Vdc (Peak: 36Vdc), max. operating current is 370mA
CT Secondary	: 5A
Sender Measurement	: 0 to 1300 ohm, accuracy: 1%FS, resolution: 1 ohm

ECO-AMFmid.MPU.232	Automatic GenSet controller with transfer switching, speed sensing from Magnetic Pickup, RS-232 communication
ECO-AMFmid.CAN.232	Automatic GenSet controller with transfer switching, CanBus J1939 ECU communication, RS-232 communication
ECO-AMFmid.MPU.485	Automatic GenSet controller with transfer switching, speed sensing from Magnetic Pickup, RS-485 communication
ECO-AMFmid.CAN.485	Automatic GenSet controller with transfer switching, CanBus J1939 ECU communication, RS-485 communication
ECO-AMFmid.MPU.232.GPRS	Automatic GenSet controller with transfer switching, speed sensing from Magnetic Pickup, RS-232 communication, GSM-GPRS feature
ECO-AMFmid.CAN.232.GPRS	Automatic GenSet controller with transfer switching, CanBus J1939 ECU communication, RS-232 communication, GSM-GPRS feature
ECO-AMFmid.MPU.485.GPRS	Automatic GenSet controller with transfer switching, speed sensing from Magnetic Pickup, RS-485 communication, GSM-GPRS feature
ECO-AMFmid.CAN.485.GPRS	Automatic GenSet controller with transfer switching, CanBus J1939 ECU communication, RS-485 communication, GSM-GPRS feature
ECO-AMFmid.MPU.232.GPRS+GPS	Automatic GenSet controller with transfer switching, speed sensing from Magnetic Pickup, RS-232 communication, GSM-GPRS+GPS feature
ECO-AMFmid.CAN.232.GPRS+GPS	Automatic GenSet controller with transfer switching, CanBus J1939 ECU communication, RS-232 communication, GSM-GPRS+GPS feature
ECO-AMFmid.MPU.485.GPRS+GPS	Automatic GenSet controller with transfer switching, speed sensing from Magnetic Pickup, RS-485 communication, GSM-GPRS+GPS feature
