ECO MC Datasheet

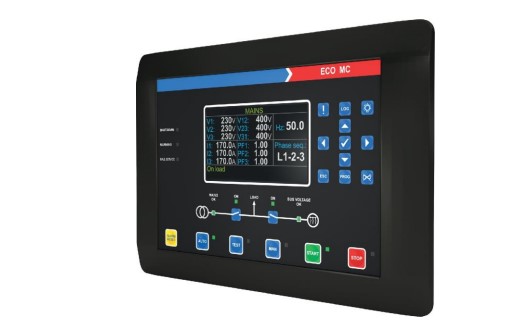

Eco MC
- Load sharing with genset (up to 32 gensets)
- Busbar voltages and frequency measurements
- Bus failure detection
- Mains de-coupling protection with R.O.C.O.F and vector shift methods
- Volts,frequency and phase matching
- Synchroscope display
- Peak lopping (mains or genset)
- Power exportto mains
- Logic Controller functionality for PLC
- Black or gray theme selection for 4.3" TFT LCD screen
- Warning & Electrical Trip:
- Mains rocof
- Mains vector shift
- Minimum gense
- Fail Monitoring :
- Emergency stop
- Mains failure
- Bus failure
- Alarm :
- Bus breaker not opened
- Bus breaker not closed
- Mains breaker not opened
- Mains breaker not closed
- Error :
- Battery low
- Battery high
- Can open
- Synchronization
- Minimum genset
- Controls :
- Mains supply
- Automatic genset start
- Load transfer
- Load sharing
| Dimensions | : 276 mm x 189 mm x 45 mm. (including connectors). Plastic housing for panel mounting. |
| Panel Cut-Out | : 223mm x 162mm. |
| Protection | : IP65 at front panel. |
| Weight | : Approximately 0,82 Kg. |
| Environmental Rating | : Standard, indoor at an altitude of less then 2000 meters with non-condensing humidity |
| Operating/Storage Temperature | : -20°C to +70°C / -30°C to +80°C |
| Operating/Storage Humidity | : 95% max. (non-condensing) |
| DC Battery Supply Voltage | : 8 to 32 V dc (Peak: 36Vdc) Max. operating current is 860 mA. |
| CT Secondary | : 5A |
| Communication Interface | : USB programming and communication port, CanOpen, Ethernet, RS485. |
| Order Information | |
| ECO MC | Synchronising & Automatic Transfer Switch |
